Product Summary
|
|
Product: |

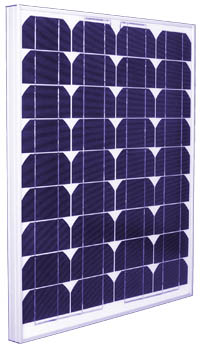

Mono-silicone Photovoltaic Solar Panel |
Condition: |
Brand New |
Availability: |
IN STOCK - (Detroit, Michigan) |
Make: |
Ramsond |
Model No.: |
SP50 |
Rated Power.: |
50 Watts |
Nominal Voltage .: |
12 Volts |
Peak Voltage (Vmp): |
17.1 Volts |
Open Circuit Voltage (Voc): |
21.6 Volts |
Peak Current (Imp): |
2.92 Amp |
Short Circuit Current (Isc): |
3.26 Amp |
Warranty: |
25 Years Manufacturer's Limited Warranty |
Suggested Retail Price : |
$519.99 |
Shipping & Handling |
FREE SHIPPING - Lower 48 States Only |
|
|

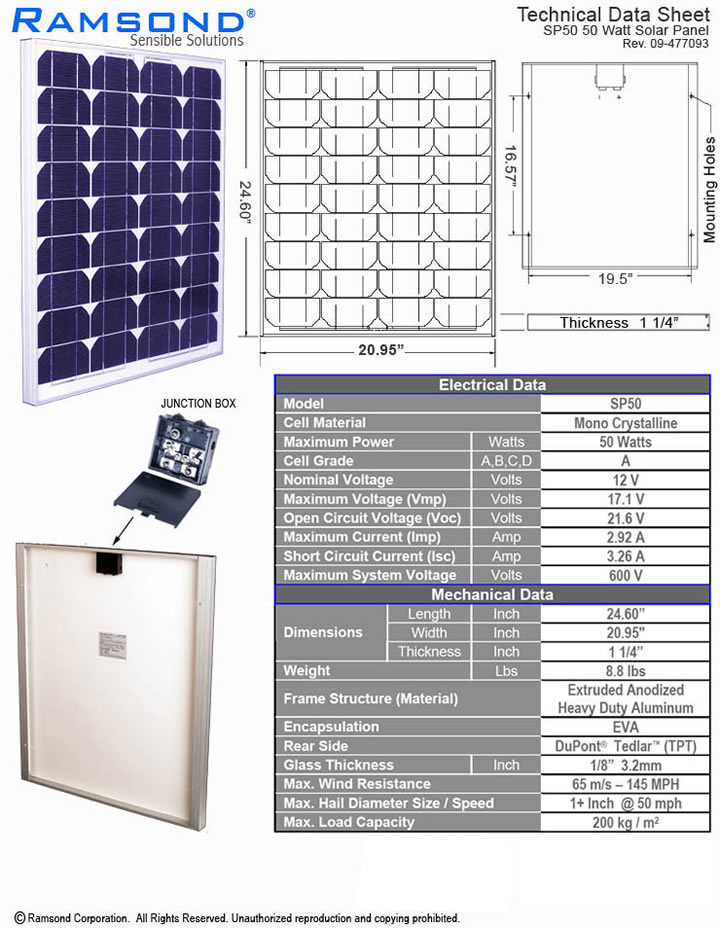

Technical Specifications
|
|
Typical Applications
|
- Battery Charging
- Emergency Power
- Residential Power
- Lighting System
- Home, Office Solar Power
- Gate Openers
- Boat Hoists
- DC Appliance Power
- Telecommunication Towers
- Weather Towers
- Utility and Traffic Towers and Signals
- Camping, Hiking, Hunting and Exploration
- Hybrid Systems
|
- Emergency Response and Disaster Relief
- RV's, Campers, Boats
- Marine Application
- Defense and Armed Forces
- Camping Locations and Tours
- Marine Power Supply (Yacht)
- Wind Hybrid Systems
- Truck Auxiliary Power Unit
- Landscaping
- Surveying
- Remote Area Applications
- Offshore Rigs and Platforms
- Mobile Laboratories
|
|
Features
|
- Silicone cell production techniques and characteristics make matching to existing systems easier
- Vacuum encapsulated cells within laminations of EVA and DuPont™ Tedlar
- Grade A quality cells
- Blue nitride anti-reflection coatings on cells
- Standard nominal voltages 12V
- Equipped with blocking diode which prevent reverse current flowing back from a battery to solar panels
- Rear Mounted Water-Proof |Connection Box
- Precision computer-automated soldering of cells using advanced German technology
- Tempered glass 3.2mm (1/8 inch) covering encapsulated cells
- Heavy aluminum frame to increase resistance to wind and snow loads, as well as hail
- Drainage holes in frame prevents damage due to freezing/thawing of water trapped between frame and laminations.
- 25 year power Limited Warranty
|
Quality Matters
|
Solar modules are a substantial investment, regardless of whether your application is commercial, industrial or residential. Most solar panels share resounding similarities in appearance. So, it is virtually impossible to simply judge the quality of a solar module by its appearance. With an increasing number of fly-by-night suppliers in the market, it is an overwhelming task to choose reliable and affordable solar modules/panels. Solar panels should be considered a long term investment. The manufacturing process, quality of materials used and product warranty set solar panels apart. Low quality solar panels often times incorporate substandard or rejected base raw material and components. They are low in efficiency and are not sufficiently encapsulated or laminated to withstand moisture and harsh environmental conditions. They are typically not specially coated to protect against degradation by UV rays. These cheaply produced solar panels (often manufactured from rejected/refused silicone cells) are often times destroyed within a few months (even weeks) after installation. Sadly, in these cases, not only are the panels damaged, but serious damage can be caused to the other installation components and appliances that may be attached to the panels. Furthermore, these garage operated businesses fail to honor any warranty. So the customer is usually left with little or no recourse.
CONSUMER ALERT Rejected / Recycled Solar Cells and Panels
A growing number of unscrupulous suppliers are obtaining rejected / recycled / used solar cells and hastily remanufacturing them and selling them as new solar panels. The rejected/recycled solar cells are often hand soldered and incorporated into new aluminum frames and then primitively laminated and sold as brand new panels. The longevity of these solar panels could be as little as a a few weeks as moisture and other environmental factors are known to quickly destroy them.
In contrast, all components integrated into Ramsond solar panels are certified to be brand new. Ramsond only uses the most premium components and raw material in its line of solar panels. Ramsond solar panels use only 'Grade A' quality silicone cells. Ramsond does not incorporate used, rejected, refused or second-hand cells into its solar panels. Furthermore, Ramsond utilizes the most advanced technologies in the production of its panels. By way of example, the precision soldering process of Ramsond cells is fully automated and guided by microprocessor controlled robotic soldering arms. When you purchase Ramsond solar panels, you can rest assured that your investment safe and guaranteed by a viable company with a long history of service.
Misrepresentation of Output
In addition to selling used/recycled panels as new, many bargain-basement solar panel distributors/retailers are known to over represent or pad the actual output. The actual output of many of these bargain-basement solar panels is 30-50% lower than that represented. Ramsond solar panels, however, are certified and tested for accuracy of output represented in the product information sheet and specifications.
|
Ramsond Solar Modules - The Elite Standard
|
Ramsond solar panels use the most technologically advanced and premium components. The Ramsond proprietary solar texture cell production system, equipment and protocol are among the most complex and advanced in the world. The solar cells are coated with a blue nitride anti-reflection coatings. This special coating process provides a uniform blue hue color and increases light absorption in all weather conditions.
The encapsulation and lamination process used in Ramsond cells consist of a process that ensures true atmospheric vacuum and encapsulation of cells within laminations layers of High Ethylene Vinyl Acetate (High-EVA) and DuPont™ Tedlar®. The proprietary material used also create an anti-shocking characteristic which makes the solar panel more resilient to withstand hail, harsh environmental factors and extreme temperatures. Each panel is equipped with low-iron, patterned, tempered glass. The glass has been manufactured, again, through a proprietary process, providing up to 60% more strength, as compared to conventional photovoltaic (PV) glass. As a result, Ramsond panels are among the world's strongest, with hail impact survival index rating of 25mm@80 km/h. This means the specialized PV glass of Ramsond panels can withstand hail size of 1+ inch, traveling at speeds of approximately 50 miles per hour.
Ramsond solar panels are framed in heavy duty anodized extruded aluminum with drainage holes. The aluminum frame is specially produced for Ramsond solar panels and is designed to provide a perfect balance of technology, style, function and appearance. The combination of the advanced components and production techniques, along with Ramsond's industry leading 25 Year Limited Warranty, make the Ramsond series of solar panels, among the most advanced in the world.
|
|
|
|
|
|
The 'Affordable Green' Innovations
|
|
While many are simply chanting 'green' slogans, Ramsond, everyday is pioneering 'green' innovations and ways to make them affordable and accessible. 'Green' is not simply a slogan for Ramsond. Ramsond was founded upon the principle that reliable 'green' technology can be affordable. Producing 'green' technologies of tomorrow is now possible through Ramsond's revolutionary innovations in technology and production. The affordability and accessibility of Ramsond solar technology is a giant leap towards energy independence and environmental conservation.
Ramsond's range of solar modules are designed for adaptability to virtually every application. Affordable and efficient, they range in output from 5 Watts to 180 Watts. Available both in poly and mono silicon, Ramsond solar panels can be used for virtually any application.. Whether you intend to light your small cottage or have a project that requires power for a large metropolitan city, Ramsond is ready to become your partner in a greener tomorrow. With an annual capacity production of 300,000,000 Watts (300 MW), Ramsond has the capability of meeting the demand of any size solar power project.
|
|
Ramsond's Full Range of Solar Panels
|
|
Ramsond SUNSHIELD Charge Controller (optional)
|
Ramsond's innovative SUNSHIELD charge controller (not included) is designed to regulate the voltage and current from the solar panel to the battery. It ensure that the battery is maintained at its optimal charge. Additionally, it protects the battery from over-charging and prevents the back-feed into the solar panel. For details about the Ramsond SunShield solar charge controller, please click on the picture below or click here to be redirected.
|
|
Direct Purchase and Warranty
|
When you purchase your Ramsond solar modules here, you can rest assured that you will receive your item in good order. We do NOT sell used, refurbished or reconditioned products. All items are BRAND NEW and available IN STOCK for immediate delivery. All Ramsond solar panels come with a 25 Year power Limited Warranty. Orders are shipped within 1-2 business days of receipt of payment. Your order will be immediately processed and shipped from one of our warehousing facilities in the US. You will also have the peace of mind of knowing that capable technicians and support team will be available to provide after-sale support.
|
Packaging and Pre-shipment Inspection
|
A superior quality product must utilize advanced packaging design and material. All Ramsond solar panels, ranging from 5 watt to 120 watt, are packaged in the most secure solar packaging available in the market. Each panel is encapsulated in a high strength molded polystyrene foam encasement and then placed in high strength corrugated cardboard box. This ensures that the solar panel arrives safety and free from damage. Additionally, each item, prior to shipping, is subjected to a rigorous inspection and quality control. Once the pre shipment inspection and packaging is completed, we will ship your item via the freight carrier of our choice (usually UPS or US Postal Service). From the time of shipping, the item usually arrive at your door within approximately 3-5 business days.
|
Shipping & Handling Costs
|
The shipping and handling to the lower 48 States is FREE. Shipping is to your door. Shipping insurance is NOT included in this price.
|
A superior quality product must utilize advanced packaging design and material. All Ramsond solar panels, ranging from 5 watt to 120 watt, are packaged in the most secure solar packaging available in the market. Each panel is encapsulated in a high strength molded polystyrene foam encasement and then placed in high strength corrugated cardboard box. This ensures that the solar panel arrives safety and free from damage. Additionally, each item, prior to shipping, is subjected to a rigorous inspection and quality control. Once the pre shipment inspection and packaging is completed, we will ship your item via the freight carrier of our choice (usually UPS or US Postal Service). From the time of shipping, the item usually arrive at your door within approximately 3-5 business days.
|
|
|
