SunRay Inverter WIRED Remote Starting Kit

SunRay Inverter WIRED Remote Starting Kit

Price:

$39.99

SKU:

sunraywiredremote

Shipping:

Free Shipping

Product Description

SunRay 1500 Pure Sine Wave Inverter Remote Starter

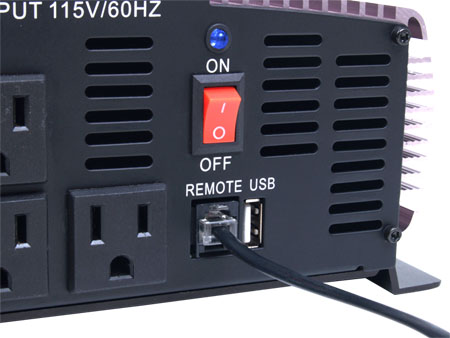

All Ramsond SUNRAY™ power inverters are remote-ready. They all feature a REMOTE connection port, located on the front panel of the inverter.

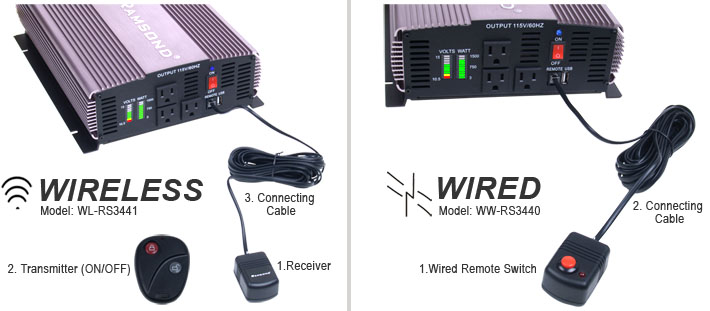

The optional remote starting systems connect to this port. With the optional remote starting systems, the Ramsond SUNRAY™ inverter can be turned on or off from distances of up to 100 feet (30+ meters) away. There are two types of optional remote starting systems available; the Wired and Wireless.

WIRED REMOTE STARTING SYSTEM

The Wired system consists of a remote switch and connecting wire.

WIRELESS REMOTE STARTING SYSTEM

The Wireless consists of a Receiver and wireless Transmitter.

Both of these remote starting systems provide convenient mechanisms to turn the inverter on or off from a distance. Each of these systems is supplied with a connecting wire assembly. The connecting wire (between the Receiver/Switch and inverter) can be lengthened as needed, using standard telephone cable and connectors.

Installation & Operation Instructions
IMPORTANT Turn the inverter power switch to the OFF position. The remote starting system will not operate unless the inverter power switch is set to the OFF position

	WIRED System

Turn the inverter power Switch to the OFF position. Connect one end of the supplied wired to the REMOTE port on the front panel of the inverter Connect the other end of the wire to the Remote switch. Pressing the button on the remote switch will turn the inverter on or off. You may extend the length of the wire your desired length.

	WIRELESS System

Turn the inverter power Switch to the OFF position. Connect one end of the supplied wired to the REMOTE port on the front panel of the inverter Connect the other end of the wire to the Wireless Remote Receiver. Pressing the button on the remote switch will turn the inverter on or off. You may extend the length of the wire your desired length.
